Building a Multi-View Application ​

Type: Tutorial | Audience: End-user (intermediate) | Goal: Create an app with multiple views and navigation

What are Views? ​

An interface can contain multiple views (pages). Each view is a separate canvas with its own rows and blocks. One view is marked as the default view -- it carries a green Start badge in the views list and is the view displayed by default when the interface loads.

Users navigate between views using:

  • Action buttons with the "go to view" action
  • Navbar blocks with interface-type links

Views are managed from the Interface Views page, where every view in the current interface is shown as a card.

Creating a Second View ​

  1. Go back to the Interface Views page by clicking the back arrow in the top bar of the Builder.
  2. Click Create New to open the Create new view dialog.
  3. Give it a descriptive name (for example Order summary) and click Create.
  4. Back on the Interface Views list, click the Edit button on the new view's card to open it in the Builder.

Interface Views page with two view cards. The Create New button is in the top-right of the list, and each card shows the view name, description, row count, and Edit / Settings / Copy / Delete actions.

Building the Second View ​

  1. With the new view open in the Builder, add rows and blocks as needed.
  2. For example, add a Title block bound to title and a Paragraph block showing deal details.
  3. This view will serve as a detail page that users navigate to from the first view.

Adding Navigation with an Action Button ​

On the first view, set up a button that navigates to the second view:

  1. Go back to the Interface Views page and open your first view.
  2. Add a Button block to the canvas.
  3. In Button settings, set the Button Type to Action Button.
  4. A new Action Type dropdown appears with two options:
    • back -- navigates to the previous view
    • go to view -- navigates to a specific view
  5. Select go to view.
  6. A View Name dropdown appears, listing all views in this interface. Select the second view you just created.
  7. The button now navigates users to that view when clicked.

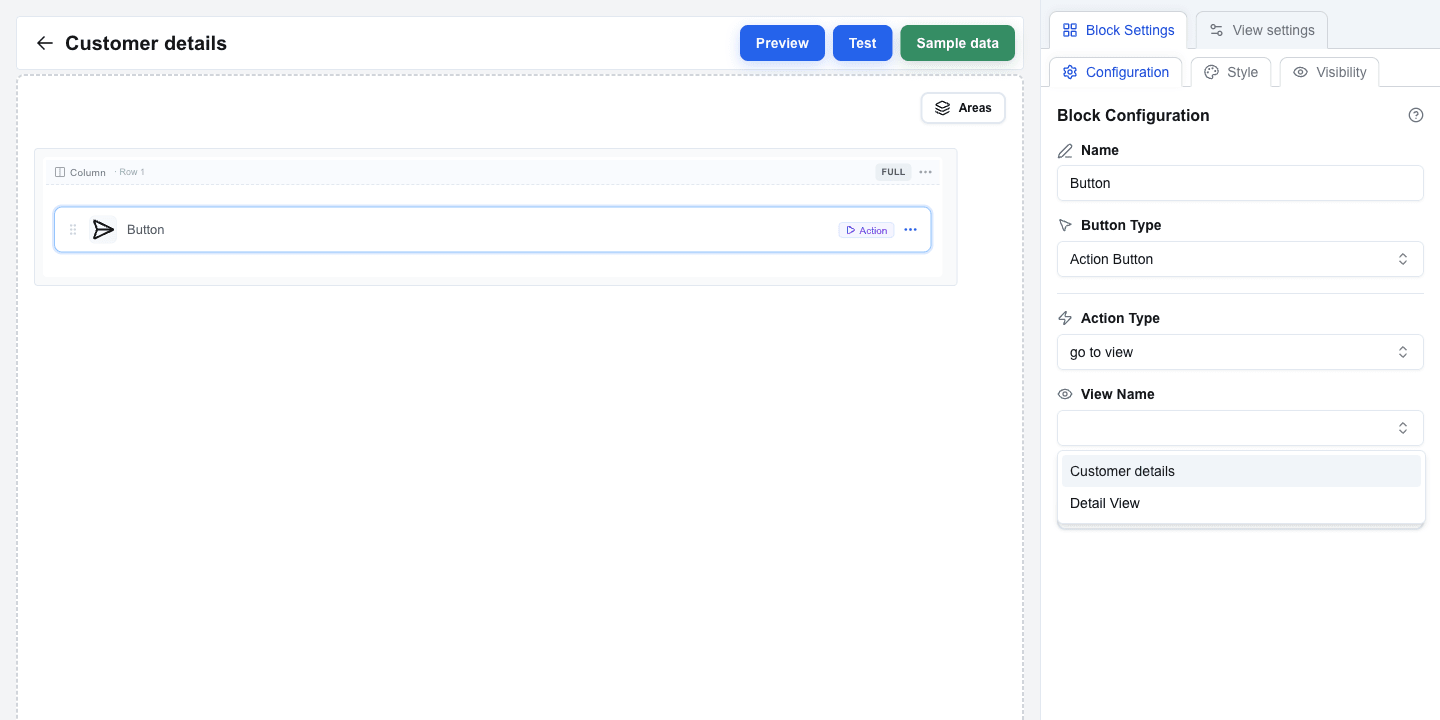

Block Configuration sidebar for an Action Button. Button Type is 'Action Button', Action Type is 'go to view', and the View Name dropdown is open showing 'Customer details' and 'Detail View' as available targets.

Adding a Back Button ​

On the second view, add a way to return to the first view:

  1. Open the second view in the Builder.
  2. Add a Button block.
  3. Set the Button Type to Action Button.
  4. Set the Action Type to back.
  5. This button returns users to whatever view they came from.

The settings panel looks the same as for "go to view" — just without the View Name dropdown.

Passing Parameters Between Views ​

Action buttons can pass data from one view to another using parameters. The receiving view accesses these values via the Search Params tab in the Data Picker.

  1. On the first view, select your "go to view" Action Button.
  2. Below the View Name dropdown, you will see a Parameters section.
  3. Click to open the parameters dialog.
  4. Add key-value pairs. For example:
    • Key: deal_id, Value: a Data Picker tag pointing to the deal's ID field.
    • Key: deal_title, Value: a Data Picker tag pointing to the deal's Title field.
  5. Values support Data Picker expressions, so you can pass dynamic data.

On the receiving view:

  1. Select a block (for example, a Title block).
  2. Open the Data Picker and switch to the Search Params tab (the icon-only tab in the picker's top bar).
  3. You will see the parameter keys you defined. Selecting one inserts a tag that compiles to deal_id.

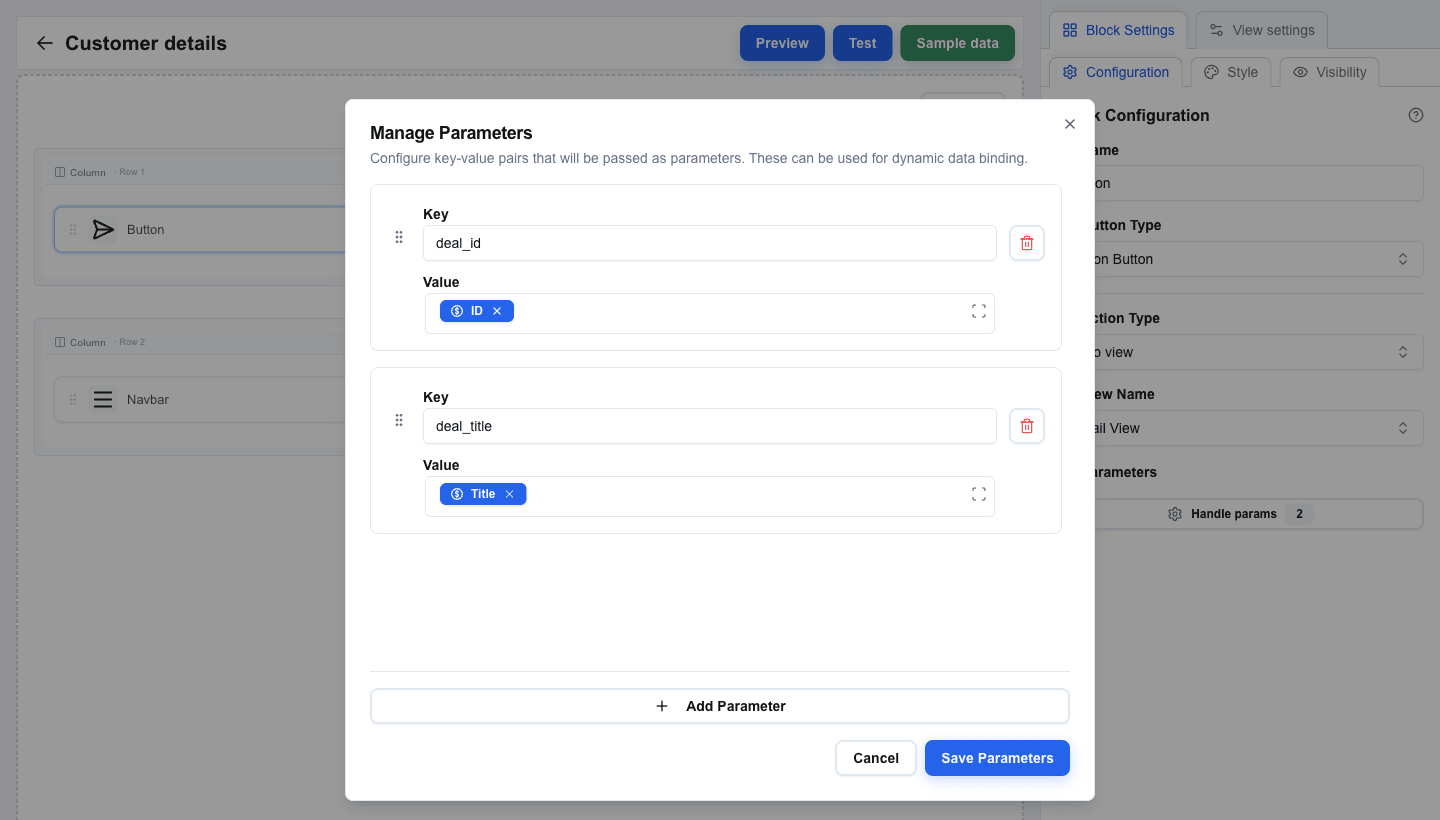

Manage Parameters dialog with two rows: deal_id paired with a blue Data Picker tag for the deal's ID field, and deal_title paired with a Data Picker tag for the Title field. Add Parameter, Cancel, and Save Parameters buttons sit at the bottom.

Using Navbar for Navigation ​

For persistent navigation across your interface, use a Navbar block:

  1. Add a Navbar block to a row on your view. It typically goes in a full-width row at the top.
  2. Click the Navbar block to open its settings. The settings are divided into sections.

Brand ​

  • Toggle Show title to display a text title in the navbar. Configure Title Text, Font Size (px) (12–48), Font Weight (Normal, Medium, Semibold, Bold), and Title Color.
  • Toggle Show logo to display a logo image. Provide the Image URL, Alt Text, and Width / Height (px).

Aria Label ​

Below the Brand section, set the Aria Label for the navigation element (defaults to "Navigation menu"). This helps screen readers identify the navigation purpose.

Layout ​

  • Layout Direction — Horizontal or Vertical
  • Alignment — Left, Center, Right, or Space Between
  • Spacing (px) — pixel spacing between nav items (0–50)
  1. Click the Manage Links button to open the links dialog.
  2. Click Add to create a new link. Each link has:
    • Label — the text displayed in the navbar
    • Link Type — choose between:
      • Interface — navigates to another view within this interface. Select the target view from the Target Interface dropdown. You can also add Parameters (key-value pairs) that are passed to the target view.
      • External URL — opens an external URL (supports Data Picker expressions)
  3. Add links for each view you want in your navigation.
  4. Reorder links by dragging the grip handle on each link card.
  5. Delete links using the trash icon.

Manage Links dialog with two Interface-type links. The first ('Customers') is expanded showing Label, Link Type set to Interface, and Target Interface set to 'Customer details'; the second ('Detail') is collapsed below. The Navbar's Brand, Aria Label, and Layout settings are visible in the sidebar behind the dialog.

Preview of the view rendered with the Navbar in place: 'My App' brand title on the left and the 'Customers' and 'Detail' links on the right. The Action Button is visible above the navbar.

Summary ​

In this tutorial you learned to:

  • Create multiple views from the Interface Views page
  • Use Action Buttons with the "go to view" action to navigate between views
  • Add "back" buttons for return navigation
  • Pass parameters between views using key-value pairs and Data Picker expressions
  • Access passed parameters on the receiving view via the Search Params tab
  • Set up a Navbar block with interface-type links for persistent navigation
  • Configure navbar Brand, Aria Label, Layout, and link settings
