Button Block

Type: Reference | Audience: Interface builder user

The Button block renders a clickable button. What happens on click depends on the Button Type you pick: open a URL, navigate to another view, submit a form, or reset a form.

Common Settings

These appear for every button regardless of type.

Setting	Description
Button Type	Determines what the button does. Options: URL Button, Action Button, Form Submit Button, Form Reset Button. A brand-new button has no type until you pick one.
Button Variant	The visual style of the button. See the list below.
Button Size	Small, Default, or Large.
Icon before text	Optional glyph shown to the left of the button's text. See Icons below.
Icon after text	Optional glyph shown to the right of the button's text. Unavailable while Show text is off. See Icons below.
Show text	On by default. Turn it off for an icon-only button. Unavailable until you have picked an icon. See Icons below.
Block name	The button's visible label. Edit it in the name input at the top of the Block Configuration sidebar; on the canvas it is shown read-only. It is plain text: the Data Picker does not apply to it, and it is not resolved from data at render time.
Require confirmation	Off by default. Turn it on to ask the user before the button's action runs. See Confirmation below.

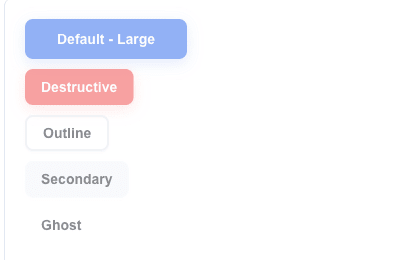

Button Variant

Variant	Appearance
Default	Primary filled button.
Destructive	Red/danger style.
Outline	Outlined, no fill.
Secondary	Muted secondary fill.
Ghost	Transparent background; visible on hover.
Link	Styled as a text link.
Custom	Your own colors (see below).

When you pick Custom, four color fields appear:

• Background color
• Text color
• Hover background color
• Hover text color

Button Size

• Small
• Default
• Large

Icons

A button has two icon slots, Icon before text and Icon after text. Both sit with Button Size and Button Variant, and both are available on every Button Type — including a button whose type you have not picked yet.

The slots are independent, and Show text can hide the text, so five arrangements are reachable:

Arrangement	How
Text only	Leave both slots on No icon. This is how every button behaved before the slots existed.
Icon + text	Fill Icon before text.
Text + icon	Fill Icon after text.
Icon + text + icon	Fill both.
Icon only	Fill Icon before text, then turn Show text off.

Pick a glyph from the shared catalogue, grouped by meaning: Actions, Navigation, Communication, Files and Status. Each glyph is shown next to its name in the list. Choose No icon to clear a slot.

Notes:

• The glyph is chosen once, in the builder. It does not come from your data, so it cannot change per row or per Area loop iteration, and it cannot be an image URL.
• There is no size or colour setting. A glyph is always 16 px and always takes the button's text colour, so every Button Variant works — the Custom variant's Text color reaches the glyph too.
• Icons look the same in the Preview view, the Test view and the published view, and a copied button keeps them.

Icon-only buttons

Turn Show text off to keep the glyph and drop the text. The button becomes a square: its height is the one Button Size already gives it, and its width now matches, so an icon-only button lines up with the text buttons beside it. It keeps its corner radius and its Button Variant colours, so a Destructive icon-only button still reads as destructive.

Nothing is lost by hiding the text:

• The block name becomes the button's accessible name, so a screen reader announces it.
• The block name also appears as a tooltip when the user hovers the button.
• The block name still reaches your service as the button name in the URL Button metadata, exactly as it does with the text shown.

Two rules keep an icon-only button usable, and the builder applies both:

• Show text is unavailable until you have picked an icon, with a note saying so — a button with neither text nor a glyph would be empty.
• Icon after text is unavailable while the text is hidden — an icon-only button carries one glyph. If that glyph was in the Icon after text slot when you turned Show text off, it moves to Icon before text for you.

On a Form Submit Button with Show error indicator on submit enabled, the error message wins the hover: while the form has validation errors the tooltip reports the number of invalid fields instead of the button's name. The error count badge and the loading spinner appear as they do on a button with text, and the accessible name stays in place the whole time.

---

Confirmation

A confirmation is an optional gate in front of the button's action: the click opens a modal dialog, and the action runs only after the user confirms it. The Confirmation section sits at the bottom of the Block Configuration sidebar and is available on every Button Type, including a button whose type you have not picked yet.

Setting	Description
Require confirmation	Off by default. Turn it on to gate the button. Turning it off again keeps the texts you wrote, so you can try the button without the gate and put it back.
Title	The dialog's question. Required, and prefilled with "Are you sure?" on the first enable. Supports the Data Picker.
Description	Optional explanation below the question. Supports the Data Picker and keeps its line breaks. An empty description leaves the dialog with the question alone.
Confirm Button Label	The confirming choice's text. Required, prefilled with "Confirm".
Confirm Button Variant	The confirming choice's appearance. On the first enable it copies the button's own Button Variant, so a Destructive button opens a dialog with a Destructive Confirm. A Custom button falls back to Default.
Cancel Button Label	The cancelling choice's text. Required, prefilled with "Cancel".
Cancel Button Variant	The cancelling choice's appearance. Defaults to Outline.

The two variant dropdowns offer Default, Destructive, Outline, Secondary, Ghost, and Link. Custom is not offered: it paints both choices from the block's single style object, which would make them identical.

Behaviour

The dialog is a gate in front of the action, not a report on it. Confirming closes the dialog and runs the action; whatever the action normally shows — a toast, a redirect, an inline alert — follows as usual.

Cancel and Escape close the dialog and change nothing. Nothing is sent, no form is submitted or cleared, and no navigation happens.

The Title and the Description resolve from data like any other Data Picker field, and a button inside an Area loop resolves them once per iteration, so each rendered copy asks about its own record. A Title that resolves empty falls back to "Are you sure?"; a Confirm or Cancel label that resolves empty falls back to "Confirm" and "Cancel". The Confirm and Cancel labels are plain text and have no Data Picker.

Per Button Type

Button Type	What the confirmation gates
URL Button	The POST to the URL. The request is sent once, after Confirm.
Action Button	The navigation. Cancel leaves the reader on the current view.
Form Submit Button	The submission. See the ordering note below.
Form Reset Button	The reset. Cancel leaves the typed values in place.

On a Form Submit Button the dialog opens before the form is validated, so a user can confirm and then be shown "field required". Fix the field and confirm again. The submission itself is unchanged: validation, the error toast, the error indicator, and the After submission action all run after the confirmation, exactly as they do without it.

Pressing Enter in a text input of a gated form opens the dialog instead of submitting: the form intercepts the key and clicks the Submit Button for you, so the gate cannot be bypassed. Shift+Enter and Enter in a textarea keep their normal meaning.

---

URL Button

Choose Button Type = URL Button when clicking the button should open a URL or call your API.

Setting	Description
Button Identifier	Optional free-text identifier used when you want to track or reference this specific button.
Button URL	Pick Use view base url to append a path to the view's base URL, or Use custom url to specify a full URL.
Path	Path appended to the view base URL. Shown when Button URL = Use view base url.
Custom URL	Full target URL. Shown when Button URL = Use custom url. Supports the Data Picker.
Button Body Data	Request body sent with the call. Supports the Data Picker.
Headers	Key/value pairs of custom HTTP headers. Header keys may only contain letters, numbers, and hyphens, and must not start with x-oc-.
Query parameters	Key/value pairs appended to the URL.
Wait page transition	When on, the builder keeps listening for progress updates from your backend after the click. Use this when the action takes a while.
Page Transition Timeout	How long to keep listening when Wait page transition is on, in seconds.

---

Action Button

Choose Button Type = Action Button for navigation between views inside the same interface.

Setting	Description
Action Type	Pick go to view to navigate to a specific view, or back to return to the previous view.
View Name	Dropdown of every view in the interface. Shown when Action Type = go to view.
Parameters	Optional key/value pairs passed to the target view as search parameters.

---

Form Submit Button

Choose Button Type = Form Submit Button to submit a form.

Setting	Description
Form	Dropdown listing every form in the view (by its Form Identifier). Pick the one this button should submit.
Form Type	How the form data is packaged and sent. See the three options below.
Submit URL	The endpoint that receives the submission. Required for JSON and Multipart/Form-Data.
Headers	Key/value pairs of custom HTTP headers.
Query parameters	Key/value pairs appended to the Submit URL.

Form Type options

Option	When to use
JSON (default)	Standard API that expects a JSON body.
Multipart/Form-Data	The form includes file uploads.
Open view with form data	Do not call an API at all — navigate to another view and pass all input values as URL search parameters.

After submission

Right below Submit URL, the After submission setting decides what happens once the data is sent.

Select view — navigate to a specific view after sending.

Setting	Description
View ID	The view to navigate to after submission.
Parameters	Key/value pairs passed to the target view.
Use input fields as search params	When on, every input value from the form is automatically forwarded as a URL parameter.

Wait for response — wait for the server to reply, then act on the response.

Setting	Description
Timeout (s)	How long to wait, 10 to 60 seconds.
Disable form after submission	When on, the submit button stays disabled after a successful response so the user cannot re-submit.
Show message after submission	When on, a server-provided message replaces the form with an inline alert instead of showing as a toast.

Validation feedback

Three toggles control how validation errors on the form are surfaced when the user clicks submit:

Toggle	What it does
Show error toast on submit	Shows a toast with the number of invalid fields.
Scroll to first error field	Smoothly scrolls and focuses the first invalid field.
Show error indicator on submit button	Shows a small error badge on the button while there are validation errors.

---

Form Reset Button

Choose Button Type = Form Reset Button when the button should clear the form's fields back to their default values.

Setting	Description
Form	Dropdown listing every form in the view. Pick the one to reset.

---

Style and Visibility

The Button block also has the standard Block Style section (background, text, borders, size) and Conditional Visibility section available to every block.
