Interface Builder

Appearance

Block Styles ​

Type: Reference | Audience: Interface builder user

Every block has a Style sub-tab in Block Settings (next to Configuration and Visibility) that controls how the block looks -- background, text, borders, corners. This page lists every control on that sub-tab.

The Badge and Alert blocks use variant-based styling (see their reference pages); their Style sub-tab shows an info card explaining that custom block styles do not apply.

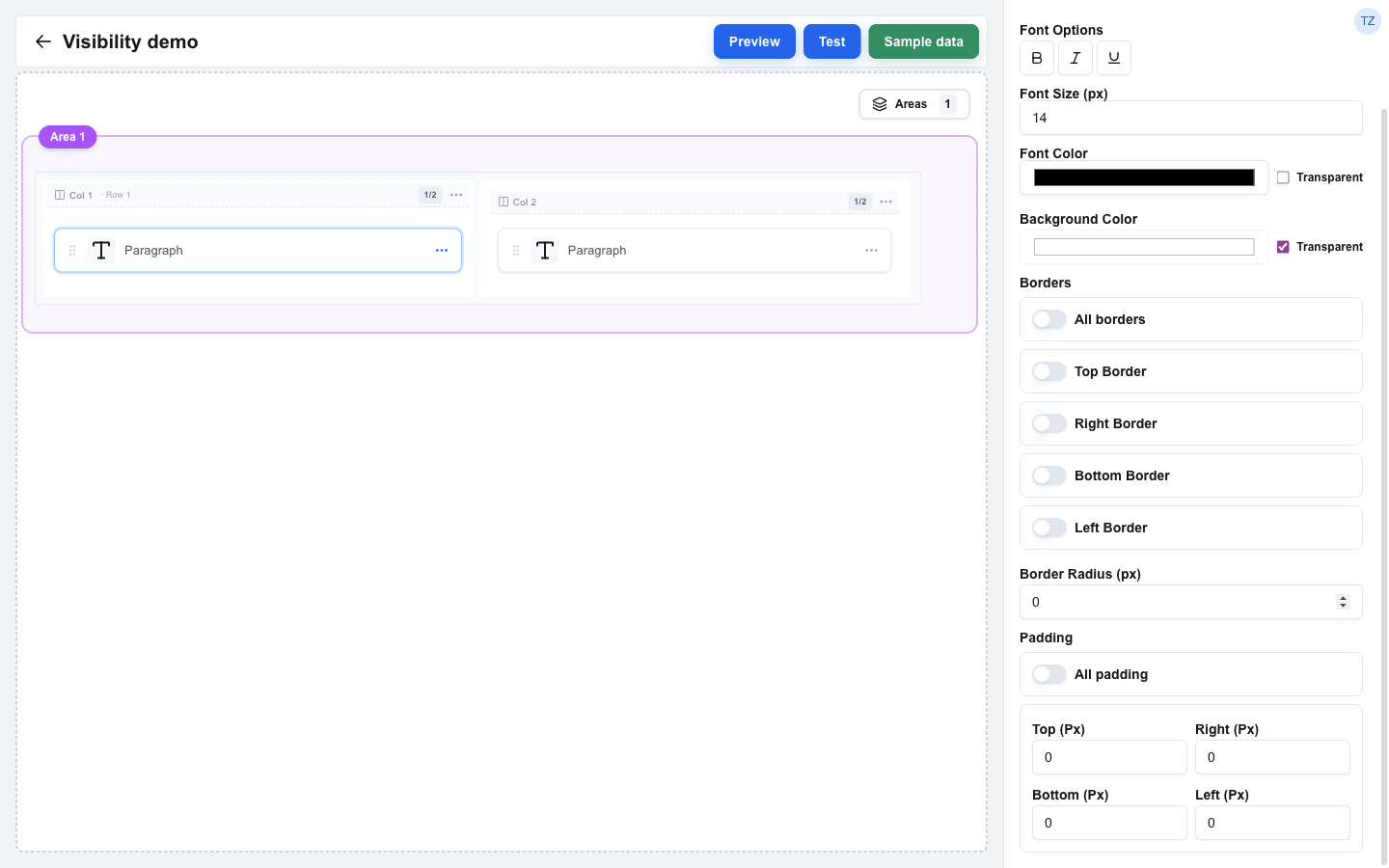

Block Settings panel with the Style sub-tab open for a Paragraph block. Font Options (Bold / Italic / Underline), Font Size 14, Font Color black, Background Color transparent. Borders section with All borders switch off and four side switches Top / Right / Bottom / Left Border all off. Border Radius 0. Padding section with All padding switch off and four numeric inputs Top / Right / Bottom / Left all 0.

Background and Text ​

SettingDescription
Background ColorPicked through a colour swatch, with a separate Transparent checkbox to clear it. Default: transparent.
Font Size (px)Text size in pixels. Default: 14 px (Title blocks default to 22 px). When a global Font Size is active, the field is disabled and a Use custom style switch appears next to it -- toggle it on to override the global value with a per-block size.
Font ColorPicked through a colour swatch, with a separate Transparent checkbox. Default: black. The same Use custom style switch appears here when a global Font Color is active.
Font OptionsA toggle group with Bold, Italic, and Underline.

The Image, Avatar, and Divider blocks omit the font-related controls (no text to style). The Image block also omits Background Color.

Borders ​

The border section has up to four sides for normal blocks: Top, Right, Bottom, Left. Each side has its own Top border / Right border / Bottom border / Left border switch. Turning a side on reveals:

SettingDescription
Width (px)Border thickness in pixels. New blocks default to 1.
StyleLine style: Solid, Dashed, or Dotted.
ColorBorder colour swatch.

All borders ​

SettingDescription
All bordersMaster switch above the four side switches. When on, the four per-side cards are replaced by a single Width / Style / Color card whose values apply to every side. Per-side configuration is preserved while All borders is on, so flipping it back off restores the previous side values. Hidden for Table blocks (which keep their six-toggle UI).

Border Radius ​

SettingDescription
Border Radius (px)Corner radius in pixels. Higher values round the corners more; large values produce circular shapes (useful for Avatar and Image).

Padding ​

Block padding sits between the block's content and its outer edge -- visible once a border is drawn. Each side has its own pixel input.

SettingDescription
Top (Px) / Right (Px) / Bottom (Px) / Left (Px)Per-side padding in pixels. Default 0.
All paddingMaster switch. When on, the four per-side inputs are replaced by a single Padding (px) input that drives every side. Per-side values are preserved while All padding is on, so flipping it back off restores them.

Table-specific borders ​

The Table block adds two extra border switches inside the Borders section:

  • Row border -- lines between rows.
  • Cell border -- lines between cells.

Each uses the same Width / Style / Color controls as a side border.

Table cell padding ​

Tables also expose a Global Cell Padding switch under Borders. When on, it reveals Top / Right / Bottom / Left pixel inputs that apply to every cell unless overridden by a column-level padding setting.

Button-specific settings ​

Button blocks show two extra controls in the Style sub-tab:

  • Button Size -- Small, Default, or Large.
  • Button Variant -- Default, Destructive, Outline, Secondary, Ghost, Link, or Custom. The other Style controls (font options, font size, font colour, background, borders) only apply when the variant is Custom; otherwise the variant decides the look. See the Button block reference for what each variant looks like.

Defaults ​

A freshly dropped block starts with:

  • Background: transparent
  • Font Size: 14 px (Title: 22 px)
  • Font Color: black
  • Bold / Italic / Underline: off
  • No borders enabled (each side defaults to 1 px Solid black when toggled on)
  • Border Radius: 0
  • Padding: 0 px on every side

The Divider block is the exception -- it starts with a light gray background colour so the line is visible.

Conditional Visibility ​

Conditional Visibility lives on its own Visibility sub-tab in Block Settings, not under Style. See Conditional Visibility for how it works.
